Custom control panels and enclosures are designed around the equipment, operating environment, and control functions of each project. Choosing the right manufacturing partner is therefore about more than finding a supplier that can form a metal box. You need a team that can understand the layout, access, protection, finish, and integration requirements behind the enclosure.

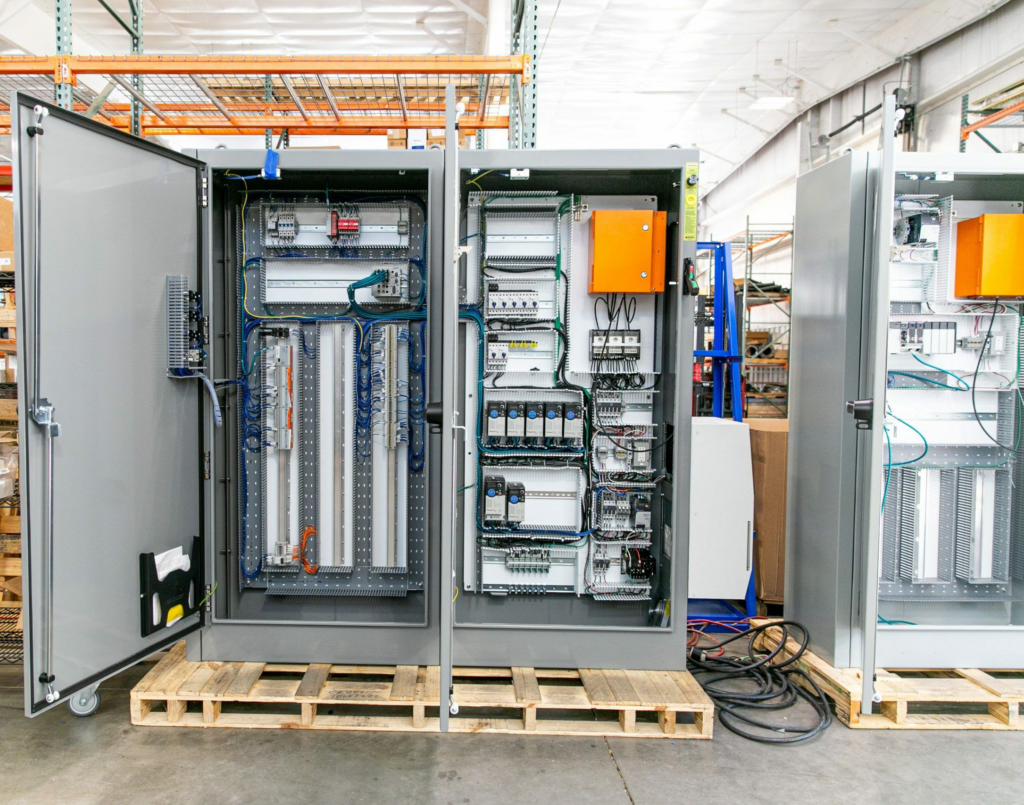

A well-planned enclosure supports reliable installation, protects internal components, and makes future service easier. From a single-door cabinet to a multi-door industrial control enclosure, the final solution should balance fit, function, manufacturability, and cost.

Custom Panel Applications for Different Requirements

Every control panel project has its own combination of dimensions, access points, mounting features, ventilation needs, cable entries, and environmental requirements. Custom fabrication makes it possible to adapt the enclosure to the equipment rather than forcing the equipment into a standard cabinet.

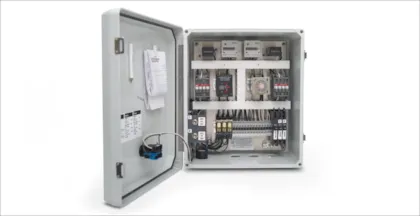

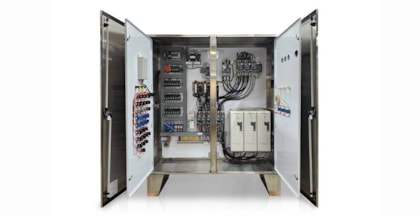

• Single-door or multi-door custom control panel layouts
• Cutouts, mounting plates, brackets, hinges, locks, and cable-entry features designed around the assembly
• Cost-conscious configurations for prototypes, replacement parts, and production programs
• Material and finish options selected for indoor, outdoor, industrial, or corrosive environments
• Drawing review and manufacturing feedback before fabrication begins

Custom Requirements Come First

The most effective projects begin with a clear definition of the required function and operating conditions. A supplier should review the enclosure drawings, component layout, access requirements, material, thickness, tolerances, finish, and assembly expectations before production starts.

This early review helps identify potential interference, insufficient clearance, difficult weld locations, or features that may increase manufacturing cost. It also gives the project team a chance to simplify the design without changing its purpose.

Fabrication and Assembly Experience

Experience matters when a control panel combines sheet metal fabrication with multiple secondary operations. Laser cutting, CNC bending, hardware installation, welding, deburring, surface finishing, and final inspection all influence the fit and appearance of the completed enclosure.

XHX Metal supports fabricated metal enclosures through a combination of two 6kW fiber laser cutting machines, CNC bending, TIG/MIG/laser welding, automated deburring, and CNC machining. These capabilities help keep key operations coordinated and make it easier to maintain consistency across prototype and production requirements.

A Cost-Effective Solution Without Losing Function

Cost control does not have to mean removing the features that make a control enclosure reliable. A practical design review can help select a suitable material, reduce unnecessary fabrication steps, combine compatible parts, and improve material utilization.

The objective is to deliver a solution that matches the project budget and timeline while preserving the access, protection, structural strength, and appearance the application requires. Clear drawings and a defined scope are the foundation for an accurate quote.

Supporting a Range of Industries

Custom control panel enclosures are used across industrial and commercial environments. Each industry brings different expectations for cleanliness, durability, access, cable management, corrosion resistance, and serviceability. The enclosure design should reflect those conditions from the beginning.

• Industrial manufacturing equipment
• Outdoor transportation and kiosk systems
• Food and beverage processing equipment
• Aerospace and test-stand applications
• Electric vehicle charging systems
• Robotic and machine-control systems
• Medical, hospitality, and education equipment
• Water, environmental, and utility systems

If your application is not listed, the same review process can be used to define the enclosure structure, interfaces, and manufacturing requirements around your equipment.

Custom Control Panel Enclosure Applications

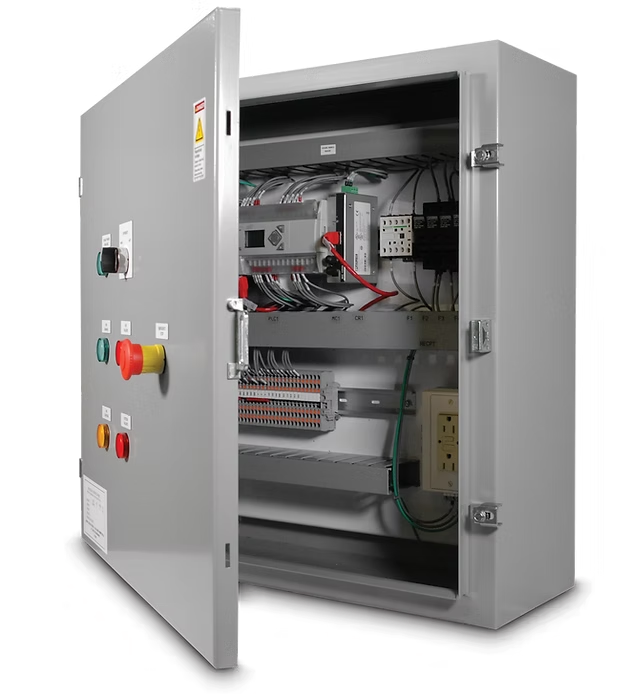

Depending on the project, a custom enclosure may include formed panels, removable covers, internal mounting plates, welded frames, access doors, ventilation features, grounding points, and protected cable routes. The final configuration should be selected according to the equipment layout and the conditions in which the panel will operate.

• Aerospace control enclosures
• EV charging station housings
• Food and beverage control cabinets
• Industrial control panels
• Manufacturing machine controls
• Robotic system enclosures
• Transportation control systems
• Test-stand control cabinets
• Waste, environmental, and water-system equipment

Electrical Integration and Compliance Requirements

Some projects require electrical wiring, cable and harness work, component installation, or certification to a specific regional standard. These requirements should be defined in the RFQ together with the equipment list, schematic, inspection criteria, and final-use market.

XHX Metal focuses on the fabricated enclosure and related metalwork. Where a project requires electrical assembly or a specific approval such as UL 508A, the scope should be reviewed with the responsible electrical integration and certification partner so that the final system is built and documented correctly.

A Practical Partner for Your Next Enclosure Project

The right manufacturing partner should make it easier to move from concept to repeatable production. That means reviewing the design carefully, communicating realistic fabrication requirements, and coordinating the processes that affect fit, finish, and delivery.

XHX Metal works with engineering and procurement teams on custom sheet metal enclosures, control cabinets, equipment housings, and related fabricated components. Send your drawings, material requirements, quantities, and target application for a technical review and quotation.

Request a quote for your custom control panel enclosure project today.

Custom Industrial Control Panel FAQ

What information should I provide when requesting a quote for custom industrial control panels?

To request a quote for custom industrial control panels, provide drawings, schematics, bill of materials, enclosure requirements, voltage requirements, control components, quantity, UL compliance needs, project timeline, and any industry-specific specifications. If drawings are not complete, XHX Metal’s in-house electrical engineers can help evaluate the design and develop a panel layout that fits the application.

Can XHX Metal build OEM control panels from existing drawings?

Yes, XHX Metal can build OEM control panels from existing drawings, schematics, and build-to-print documentation. This is a strong fit for manufacturers that already have approved designs and need a reliable panel shop for repeat production, serial builds, quality control, and consistent integration into their larger equipment or systems.

Can XHX Metal design custom control panels if we do not have finalized drawings?

Yes, XHX Metal can design custom control panels in-house when finalized drawings are not available. XHX Metal’s electrical engineering team can help develop schematics, layouts, enclosure configurations, and component selections based on the project’s performance requirements, safety standards, available space, and integration needs.

What factors affect the cost and lead time of a custom control panel project?

The cost and lead time of a custom control panel project depend on panel complexity, enclosure modifications, component availability, engineering support, production quantity, testing needs, and documentation requirements. Build-to-print and repeat OEM panel projects may move faster when drawings, components, and specifications are already finalized.
